Atreus build part 4: Wiring the USB-C breakout board
This post belongs to the Atreus build series, which was introduced by Onward with the Atreus keyboard.
The breakout board will give a USB-C socket to the Atreus, much nicer to use than an old —though still omnipresent— micro-B socket. The breakout board I am using (from Adafruit) takes care of preparing the signals to force the USB-C end as a downstream device through a set of properly placed resistors. (Downstream devices means it must be connected to a host device, it cannot function on its own or be a host itself.)
All that is left for me to do is to strip a USB cable with a micro-B plug end that will connect the breakout board to the Pro Micro. And be mindful of the connector enclosure thickness as it must fit inside the casing, which in my case gives me 6 millimetres clearance.

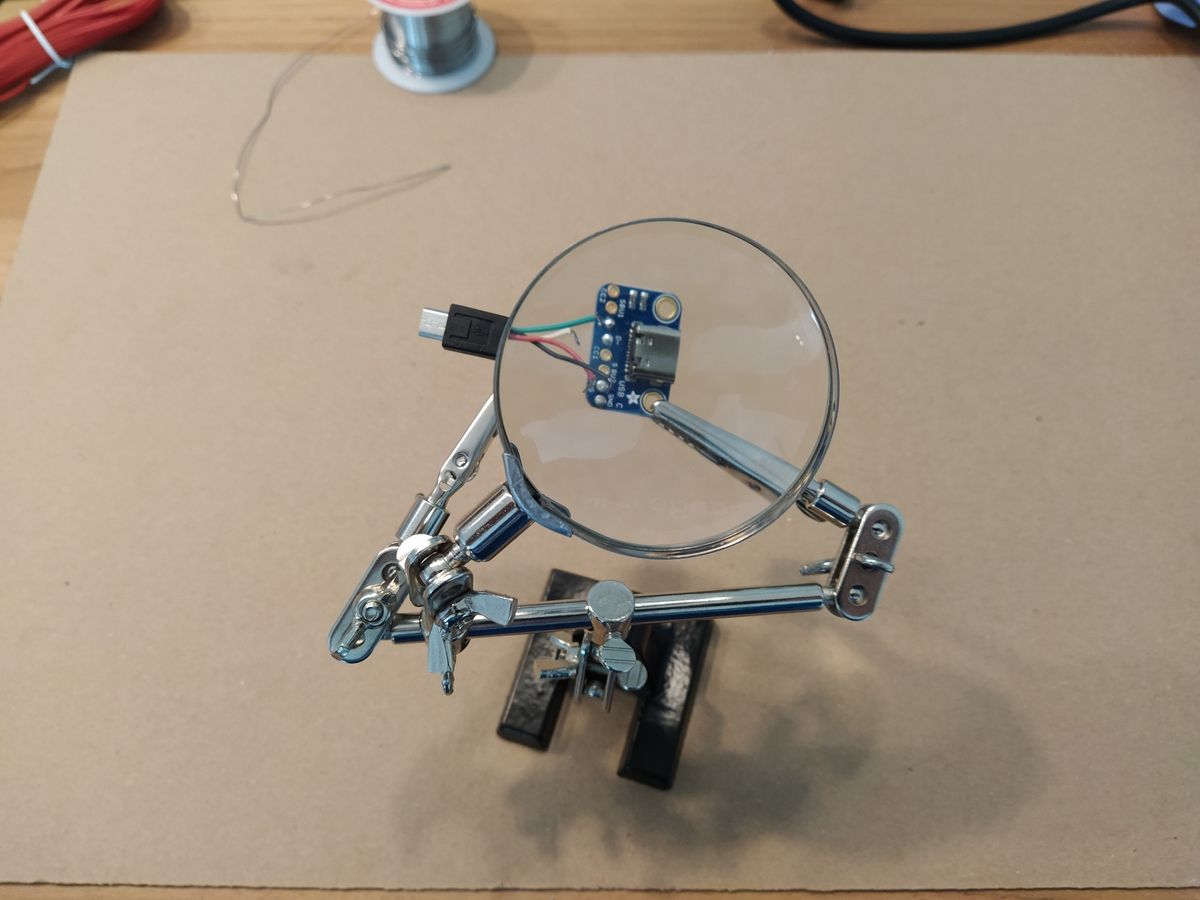

Soldering the four wires of USB 2.0, those wires are thin and I cut them quite short.

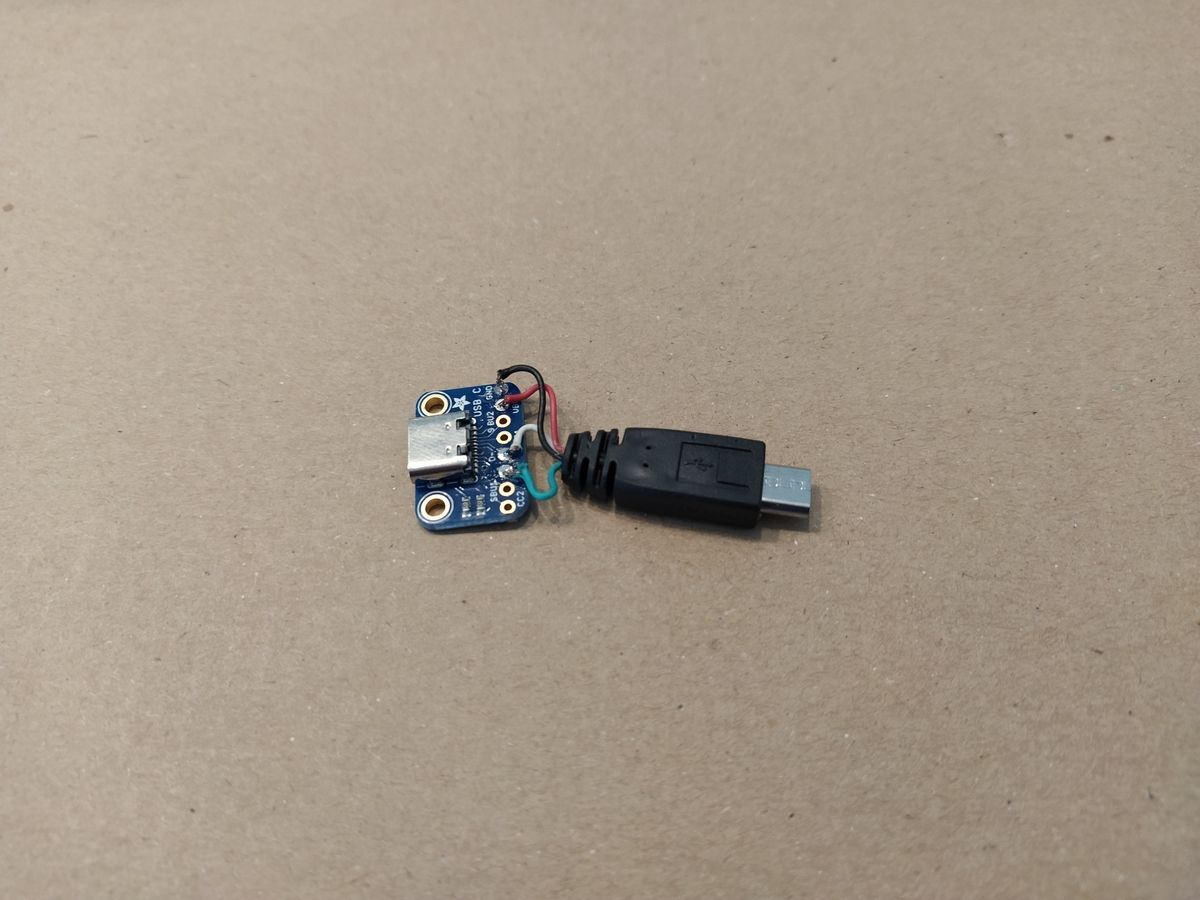

USB-C breakout board (socket) soldered to USB micro-B plug.

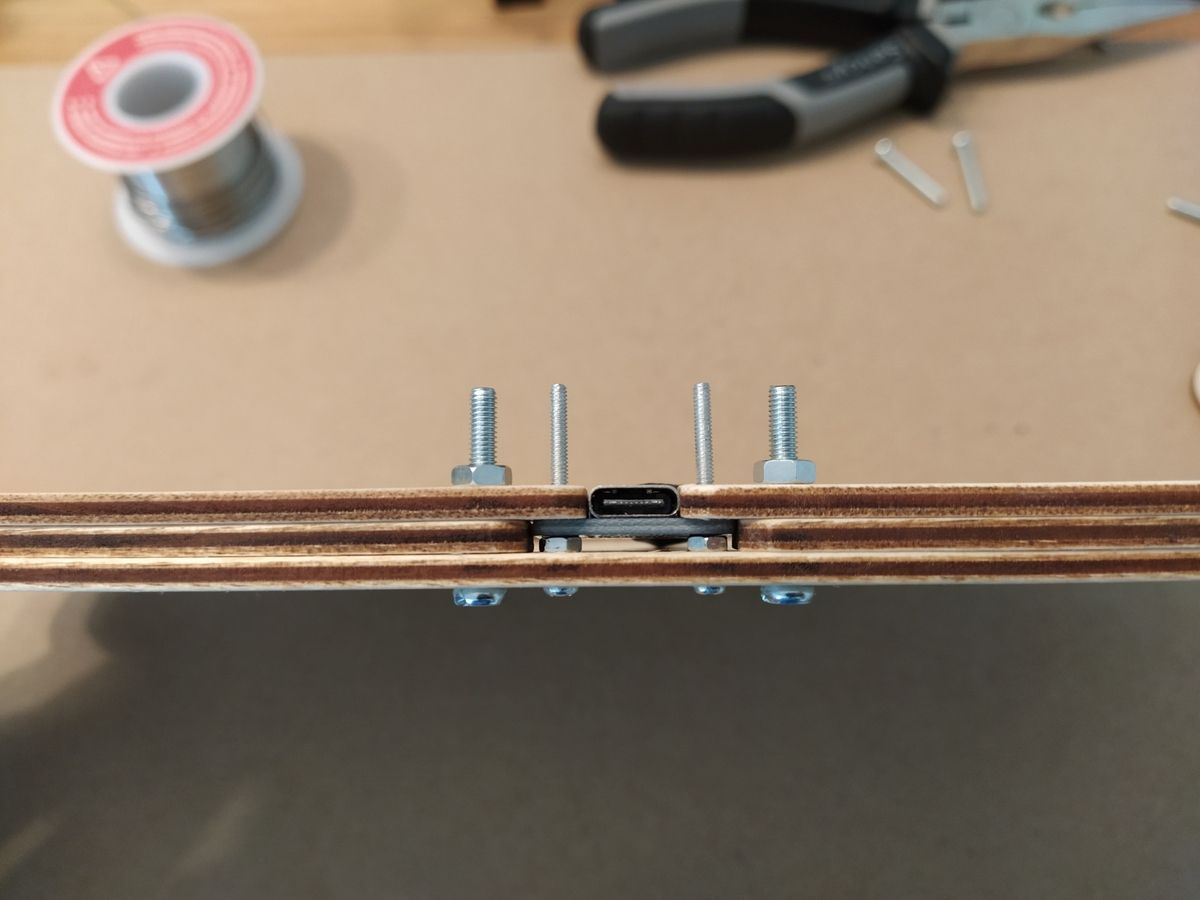

The USB-C board and socket fit nicely thanks to a couple of nuts. Considering the materials (wood does flex) and the operator’s skills, it’s as close to perfect as it can be. The outmost external nuts are holding the layers temporarily for the photo shoot.
Once that is done, the micro-B plug can be connected to the Pro Micro and the casing assembled.

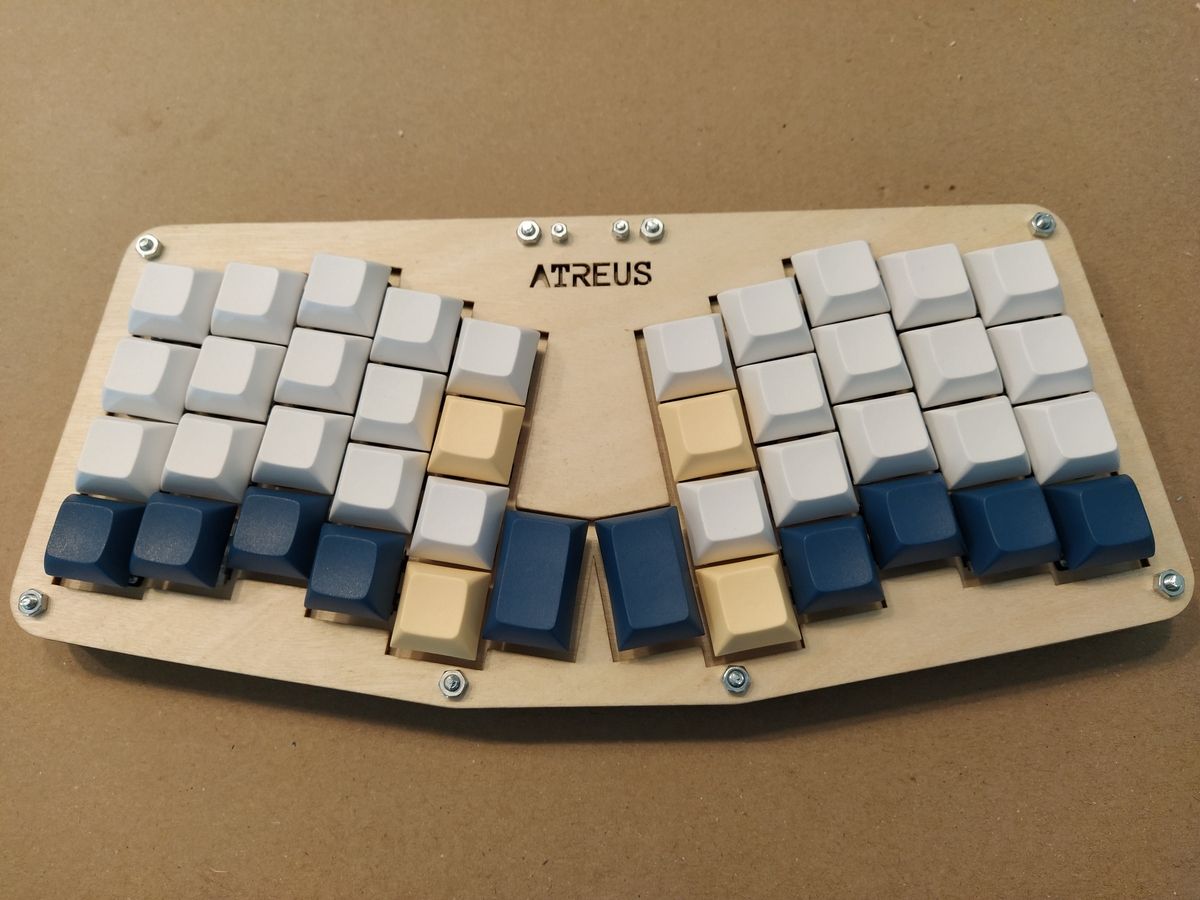

The keyboard fully assembled, with keycaps on.
Edit: And a picture of how the breakout board is tightly fitting at the edge of the casing. This gives a bit more perspective as to why the USB plug wires were cut so short.

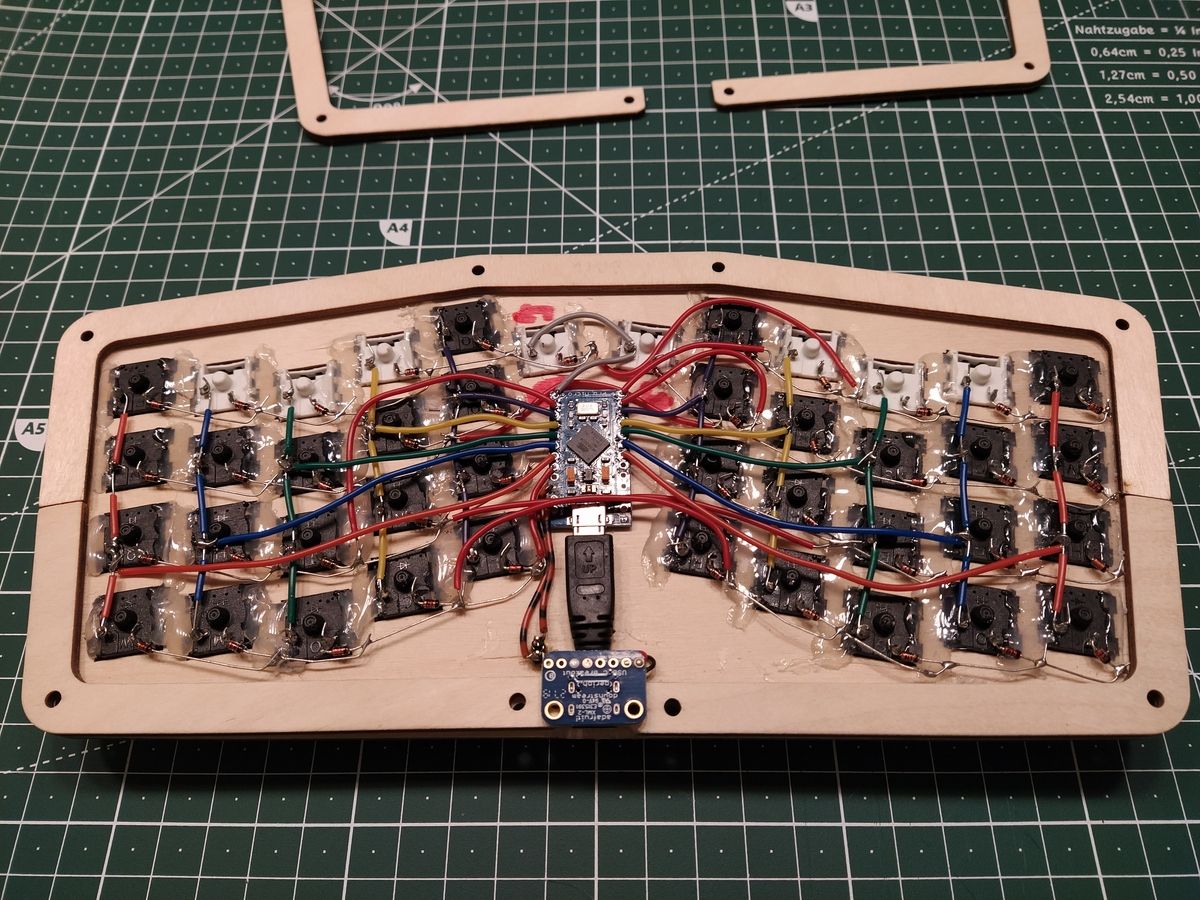

Upside-down, bottom-up, view of the USB-C breakout board connected to the Pro Micro.
